背景
目前BIE的云端资源类型均为自定义资源类型，如果用户的应用为原生K8S语义的YAML文件，那么用户需要将原生YAML文件的语义转换成BIE的资源语义进行应用及配置项等的创建，增加用户工作量的同时，语义转换失误就会造成实际下发的应用或配置项与原生YMAL中的应用及配置项产生差异，从而导致应用下发错误等问题。
为了解决上述问题，BIE目前支持原生K8S YAML语义资源文件的接入，用户可将原生YAML文件直接上传，系统会自动创建相应的BIE自定义资源类型，同一YAML文件可存在多种资源类型的定义，"---"分隔即可。
资源类型限制
由于需要与BIE云端自定义资源兼容，因此目前支持的K8S原生资源类型如下所示，除此之外的类型暂不支持：
| 类别 | 资源类型 |
|---|---|
| 资源对象 | Deployment、StatefulSet、DaemonSet、Job、Service |
| 存储对象 | Volume、Secret、ConfigMap |
使用说明
2.1 操作界面

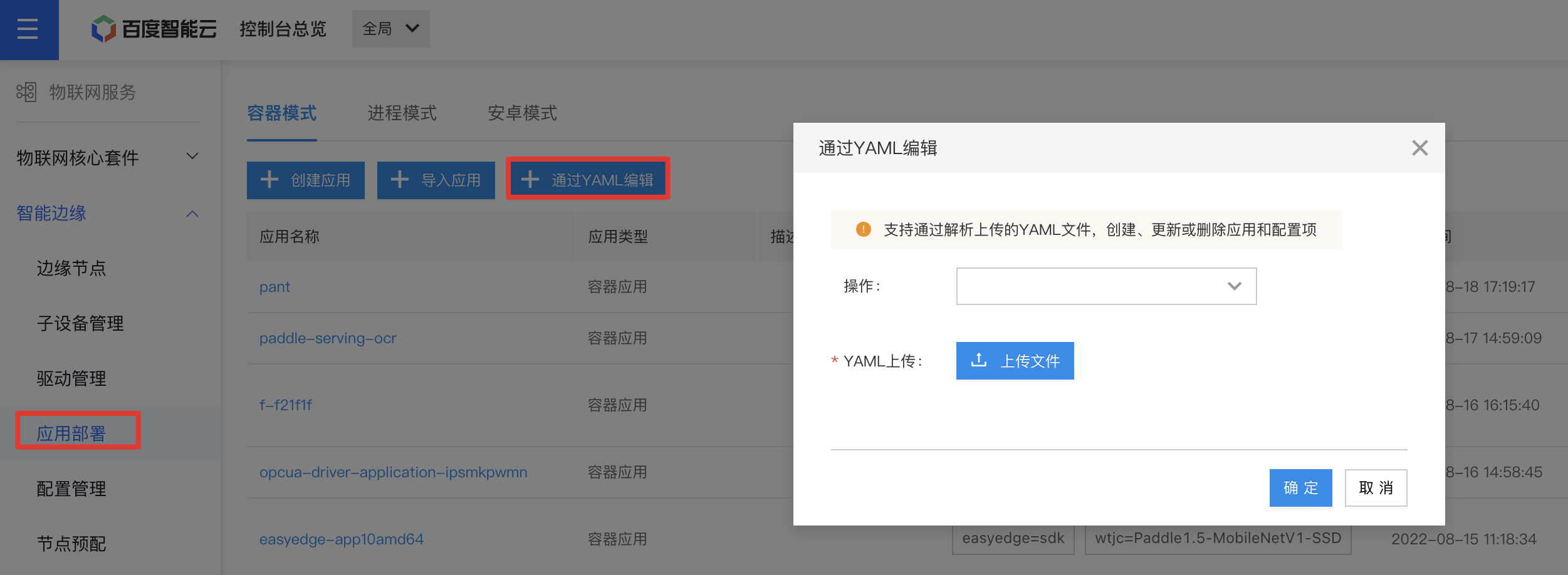

通过应用部署->容器模式->通过YAML编辑打开相应对话框：
用户可以选择创建、更新、删除资源，只需上传对应的YAML文件即可。
2.2 nginx示例应用创建
- 导入一下yaml文件
apiVersion: apps/v1 kind: Deployment metadata: labels: app: nginx name: nginx-yaml
namespace: default spec: replicas: 1 selector: matchLabels: app: nginx template:
metadata: labels: app: nginx spec: containers: - image: nginx:latest name: nginx
ports: - containerPort: 80 volumeMounts: - name: common-cm mountPath: /etc/config -
name: dcell mountPath: /etc/secret - name: cache-volume mountPath: /cache - name:
test-volume mountPath: /test-hp imagePullSecrets: - name: myregistrykey volumes: -
name: common-cm configMap: name: common-cm - name: dcell secret: secretName: dcell
- name: cache-volume emptyDir: {} - name: test-volume hostPath: path: /var/lib/baetyl type: Directory

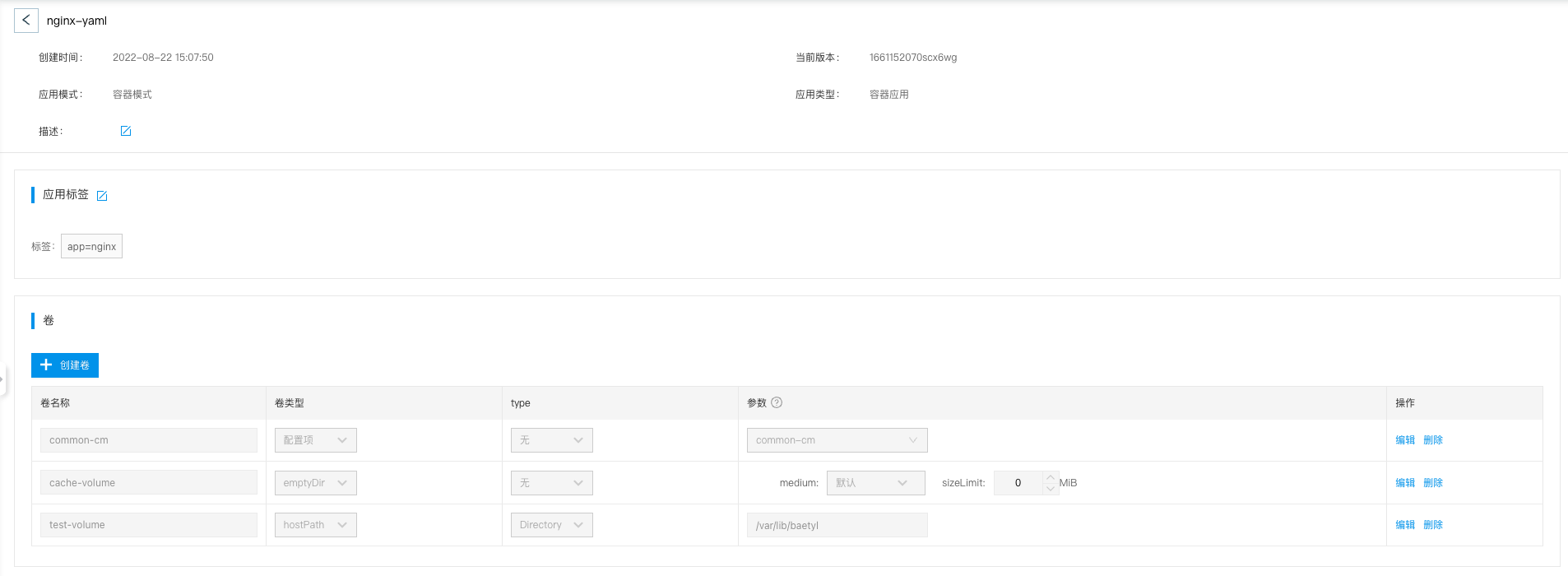

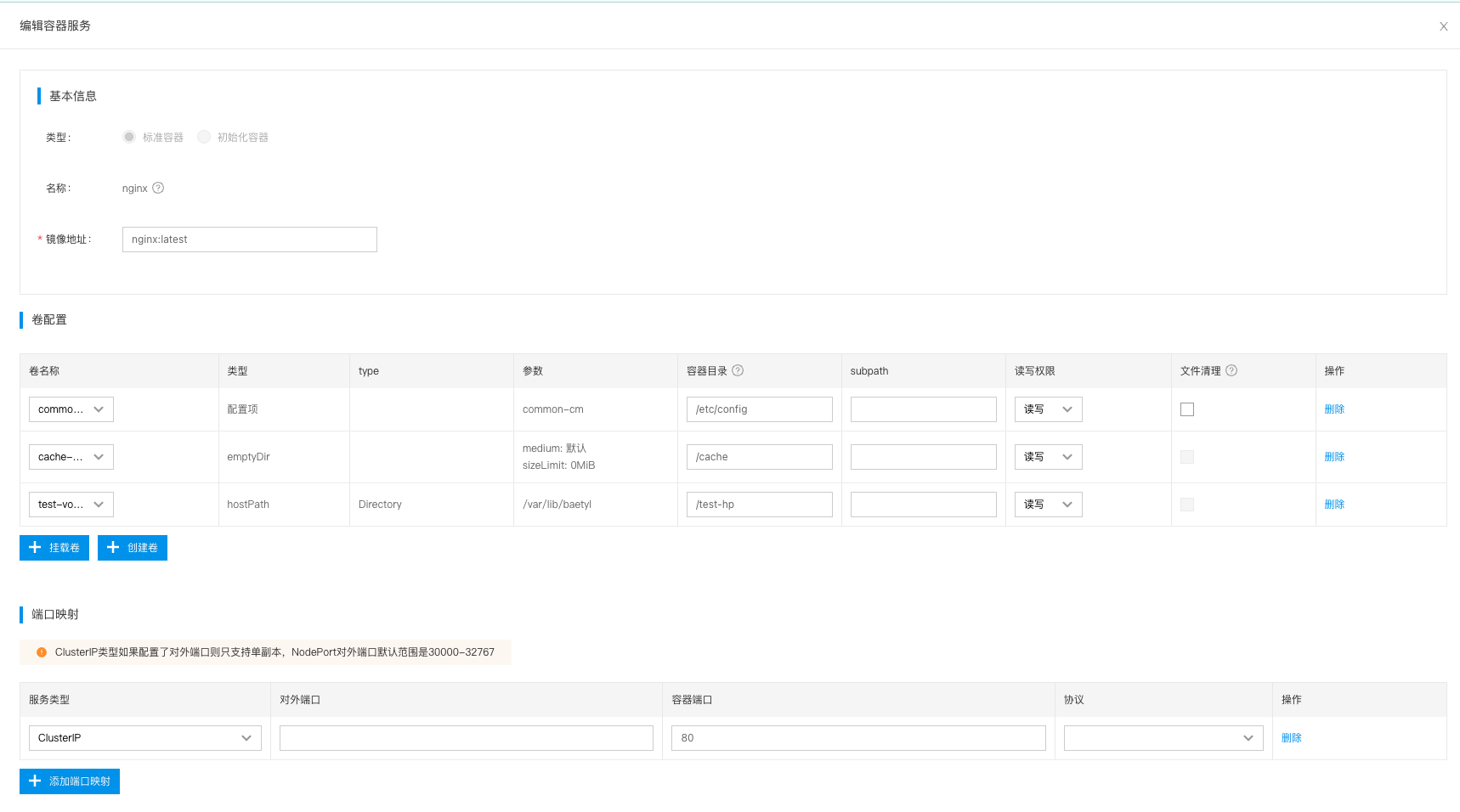

- 导入后查看创建的nginx应用，如下所示：
2.3 各类型资源创建示例
2.3.1 密文类资源
镜像仓库凭证
- type固定为 kubernetes.io/dockerconfigjson
apiVersion : v1 data: .dockerconfigjson : eyJhdXRocyI6eyJET0NLRVJfUkVHSVNUUllfU0VSVkVSIjp7InV
zZXJuYW1lIjoiRE9DS0VSX1VTRVIiLCJwYXNzd29yZCI6IkRPQ0tFUl9QQVNTV09SRCIsImVtYWlsIjoiRE9DS0VSX0VN
QUlMIiwiYXV0aCI6IlJFOURTMFZTWDFWVFJWSTZSRTlEUzBWU1gxQkJVMU5YVDFKRSJ9fX0= kind : Secret metad
ata: name : myregistrykey namespace : default type : kubernetes.io/dockerconfigjson
证书
- type固定为 kubernetes.io/tls
apiVersion: v1 data: tls.crt: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSURpekNDQW5PZ0F3SUJBZ0
lRWENzeE02UnpjcTJVUk5ROHBINjZKekFOQmdrcWhraUc5dzBCQVFzRkFEQVYKTVJNd0VRWURWUVFERXdwcmRXSmxjbT
VsZEdWek1CNFhEVEl4TVRJeU16QTJOREF5TmxvWERUSXlNVEl5TXpBMgpOREF5Tmxvd0xURXJNQ2tHQTFVRUF4TWlZb
UZsZEhsc0xYZGxZbWh2YjJzdGMyVnlkbWxqWlM1a1pXWmhkV3gwCkxuTjJZekNDQVNJd0RRWUpLb1pJaHZjTkFRRUJ
CUUFEZ2dFUEFEQ0NBUW9DZ2dFQkFNeEdhays0QXd6ZDI2VWMKMzhvM05scVp2RWcrUFJqRkRvV1F0NnB1Y3ZDdFo0
MUdGWXdFODlaMm1tT1RSeXlma1d1Mi95aWgzbkMwYTdvSwpxMmF5dzJzYTExRWU3TkZYMUY2MzB3UHNmZ1A0aG1LZ
mdIbEd6N05hTHU1SWQyNTNtZWtwZmI0QUs1UnVkNmZWCjEyOXJ1WXJUSDFLSHl3cWdkTGdqWFlVS0Q2VGhPYk1hTW
5vVG5haTVnR3Evd1VMVVR0cy8zcUNaTU53ajlrNkoKR2hwWTQ3cFFhck1MVU1tWTl4TzExcDZNVzFIelRFQ2VQM0F
QMUtVenZUMFd5U0kyb2NxdENIMlN1bUl5aW5uUwpEcnVTU3Jxb0pKOFE0MHhwdjROTjdqYm55M0k2TDZyWERJV2kw
UmFZQ2pTaHc3TGlZSEVtcENBWEIxSHl3VmswCnZlNTFYRXNDQXdFQUFhT0J2akNCdXpBT0JnTlZIUThCQWY4RUJB
TUNCYUF3RXdZRFZSMGxCQXd3Q2dZSUt3WUIKQlFVSEF3RXdEQVlEVlIwVEFRSC9CQUl3QURBZkJnTlZIU01FR0RB
V2dCUWx0aXVhem9leW5IZVdJQXJWVC9EKwpEeGM1V2pCbEJnTlZIUkVFWGpCY2doWmlZV1YwZVd3dGQyVmlhRzl
2YXkxelpYSjJhV05sZ2g1aVlXVjBlV3d0CmQyVmlhRzl2YXkxelpYSjJhV05sTG1SbFptRjFiSFNDSW1KaFpYUj
ViQzEzWldKb2IyOXJMWE5sY25acFkyVXUKWkdWbVlYVnNkQzV6ZG1Nd0RRWUpLb1pJaHZjTkFRRUxCUUFEZ2dFQ
kFHbkVMMzFwaitZdkFUa3N3L09pK2dBTwp5a05uYVhlZ2dLMEtnMW5vZmhXNXlhajBHNU9yVHFyVTBsYm5SVDE
wTUgyKzZpcG9JSEVPNEliSTRnUEo0Z2JqCllNb2JQdTJGeDN0TVd2SStTcEs1NEJMT3FlZk5VMEJPV2pwSU5Vc
is2MGl1OFZaNDhhYnVLZ0FjUmJSNktiQTIKRlpFN2VsZ0JHbnJ6ZUh1NHlNdEx2VEI2VUNzMFZnL0YvRkdVWjJ
1ZnU3bEM5dFVFc3c0U3ZFSEp6ZEZLRnBNOAp3cGZOQU5WOWVEL1dlWDJRNEY5ci9NZm1XUFdIS2pJWTlTRzN1c
29VUjlKZzgvZlZFaXBnRlRYQ3NlSnFEb1RECk9hN0J6TnVBZ3NlOVVGUmswc2ZGZnJkM1N4WkVmNHhZVzkwcmt
IU3crL0c3Ni9RS3BYeTNaV0FFTXVnZmxsaz0KLS0tLS1FTkQgQ0VSVElGSUNBVEUtLS0tLQo= tls.key: LS
0tLS1CRUdJTiBSU0EgUFJJVkFURSBLRVktLS0tLQpNSUlFcEFJQkFBS0NBUUVBekVacVQ3Z0RETjNicFJ6Znl
qYzJXcG04U0Q0OUdNVU9oWkMzcW01eThLMW5qVVlWCmpBVHoxbmFhWTVOSExKK1JhN2IvS0tIZWNMUnJ1Z3F
yWnJMRGF4clhVUjdzMFZmVVhyZlRBK3grQS9pR1lwK0EKZVViUHMxb3U3a2gzYm5lWjZTbDl2Z0FybEc1M3A5W
FhiMnU1aXRNZlVvZkxDcUIwdUNOZGhRb1BwT0U1c3hveQplaE9kcUxtQWFyL0JRdFJPMnovZW9Ka3czQ1AyVG9
rYUdsamp1bEJxc3d0UXlaajNFN1hXbm94YlVmTk1RSjQvCmNBL1VwVE85UFJiSklqYWh5cTBJZlpLNllqS0tlZ
ElPdTVKS3VxZ2tueERqVEdtL2cwM3VOdWZMY2pvdnF0Y00KaGFMUkZwZ0tOS0hEc3VKZ2NTYWtJQmNIVWZMQld
UUzk3blZjU3dJREFRQUJBb0lCQVFDeG5uU29ObzlvYTZ5bAp5QktMQ1RFWTNGNUx6dHBmSkZFNU1CbVRkeEE0V
i84WFp4NHJMczg2NXN2ZDAxenEzeUNhTVhkeVJEVmZlSEhIClJhbTkxYWg0QTlHL05vMmloYVVpYXVKdm9mMzh
3K2RONy9UTS94WndrL1VFdWp3bThKWUNtRkkrbUhWTVRqVjYKMlVUSEhEc3NDK0ZMYU1uU3hxeFd4R0YzNGNTe
Wpwb3VWNkdxTmY3eDBCa2llb1NieEZTd1cwa3ZreGJsdnpiZQpBTGpmcW1JcTJuWlo2OFZISTRncGR4dlIvU09
ENjFRVzc1QU1wUGplbytzOHluaWZ3dDV0Tzh1dU5CRkE2NmJLCjlqRFFuc096RXR5aXZlN1AvWC9BME5YMEdN
UFVHOHRBZjFMMFNlV0E4WmtwQ3RsU05KZlVLTWIwM0g3Y2hQVDgKQVhlL0R2MkJBb0dCQU94dytTUVhHQ0lzL
3NNUmZ4YjZBS2loSHdDc1BieG1Yck8rNlZFK1F5VHlvMGFYdWxVbQo2UjZxNkNnRlhSWitEL2NKWEpSTUZmYmc
zK3dlVmtvZkdDeE5rZHl5bDVVUTdHczlVRXd0OXJZMy9PQ1Z5Zjc3Ck4rc0NpbkY0Z0E3amlzRVRSUGhVUUlBV
k1wSmlDaHRvTTBTNDBVeXZwMzBTczNDZVBwcTZaczBMQW9HQkFOMHMKUlJnaXlZNjRmbHlrZGl0ZEZubnpocG1G
c3U3NlVHb0ZlYlAzMzdQSk51THJqRWxQUnZTSUtlczlzVUVsN0xRNQpnajg2TjhZY2txRmJyZWVaVkZsYlZNb
GZpRjhpaFpacjl2cy9pNFhXeE5aK3ZlM2tEZngrTlpQYmhycmpBbS9JCkFDNXIzTWZNaWNlZEt5c2xlNVd0Tj
JkVGRBQ1NsUlVLTWxMTmRMWEJBb0dBWHN3YzE5OTZpWmxJdTZVME0xNGgKRFhzc0Z2VDMrNlYvcXNtTWVrcGd
XVnYvSXJxS3RzRlhEaml2dy93Q2lwWVlpSTkwVXZEK2pYRXoxbE9EZlV4aQpRTUVKRGxkOGR3UEdCbWthM0xC
QkRtWDhPWDlVOGFwL2pQWUQwK0xnVlJmZDlmTm4zN2pIODVLTUtDeXVxTFpxCmQ4OHgrM0VoMGYvQmVoRzRRQ
WtrVm1rQ2dZRUFzTlRxVVVmTyt1c0xMS3JaU0FaZktCWEtzZ2d4YmR4NFdxd1MKQ0EvUXJYL2RBRVR2bnRWaG
w3VWVQdFRPV1pZbTBGbUNoMmJXblBEUFUyOW5kVm9rRkdWdlBxbkE4TDg3SzI4YQp3dnFsWk5hMy9mN0xmOT
NzU01ubnNGVytQTUd2ZXd2ZkNUNTRBTTdLQWV6cFRNL2xKV0NlZ1dBNXlSTnBXcThTCldSMm5pSUVDZ1lBMT
VUUjZtaXlFdW1Xbnp4MDBURk0zZDNTTC9LejFGSkRSd1BPam45Ri8vRFVKZ0J0RFErQWwKalc5MTFrekpvZjR
BMjhVd0FKMFhQbzd5Zkx2bEpobWlPU1BhNi9ja0lsZ0E4S0pFZ2l4RExROHk5QjZqajFoQgpWZk84VVJSL3FUZ
G9uMTd6L1lHQ09BUzhzWTQ2UEova2J2R1BiUVpOOGFZaGFRSGZidCtUSWc9PQotLS0tLUVORCBSU0EgUFJJVkF
URSBLRVktLS0tLQo= kind: Secret metadata: namespace: default name: baetyl-tls-secret type: kubernetes.io/tls
普通密文
- 普通KV类型配置项 type为 Opaque
apiVersion: v1 kind: Secret metadata: name: dcell labels: secret: dcell annotations: secret:
dcell data: username: YWRtaW4= password: MWYyZDFlMmU2N2Rm type: Opaque
2.3.2 配置项类资源
普通配置项
apiVersion: v1 kind: ConfigMap metadata: name: common-cm data: example.property.1: hello
example.property.2: world conf.yaml: |- property.1: value-1 property.2: value-2 property.3: value-3
镜像配置项
- label：baetyl-config-type: baetyl-image 必须带，用于区分类型
- data：KV类型，且KEY的值必须为address
apiVersion: v1 kind: ConfigMap metadata: name: image-cm labels: baetyl-config-type: baetyl-image data: address: nginx:latest
引入文件配置项
- data：kv类型，key值为文件名，value值如下所示，具体参考api，支持bos、http、s3等引入方式
apiVersion: v1 kind: ConfigMap metadata: name: object-cm data: 123.jpg: |- type: object
source: awss3 account: current url: http://download.com/url endpoint: http://xx.xx.com
addressFormat: pathStyle bucket: baetyl object: func.zip unpack: zip ak: xx sk: xx md5: xxxx
函数配置项
- label：baetyl-config-type: baetyl-function 必须带，用于区分类型
- data：KV类型，key值为函数名，value如下所示
apiVersion: v1 kind: ConfigMap metadata: name: function-cm labels: baetyl-config-type:
baetyl-function data: index.py: |- "type": "object" "source": "awss3" "account": "
current" "url": "http://download.com/url" "endpoint": "http://xx.xx.com" "addressFormat": "
pathStyle" "bucket": "baetyl" "object": "func.zip" "unpack": "zip" "ak": "xx" "sk": "xx" "md5": "xxxx"
2.3.3 应用类资源
Deployment
apiVersion: apps/v1 kind: Deployment metadata: labels: app: nginx name: nginx namespace:
default spec: replicas: 1 selector: matchLabels: app: nginx strategy: rollingUpdate:
maxSurge: 25% maxUnavailable: 25% type: RollingUpdate template: metadata: labels: app
: nginx spec: containers: - image: nginx:latest name: nginx ports: - containerPort: 80
volumeMounts: - name: common-cm mountPath: /etc/config - name: dcell mountPath: /etc/
secret - name: cache-volume mountPath: /cache - name: test-volume mountPath: /test-hp
imagePullSecrets: - name: myregistrykey volumes: - name: common-cm configMap: name:
common-cm - name: dcell secret: secretName: dcell - name: cache-volume emptyDir: {}
- name: test-volume hostPath: path: /var/lib/baetyl type: Directory
Daemonset
apiVersion: apps/v1 kind: DaemonSet metadata: labels: app: nginx name: dsApp namespace:
default spec: replicas: 1 selector: matchLabels: app: nginx template: metadata: labels:
app: nginx spec: containers: - image: nginx:latest name: nginx resources: limits:
memory: 200Mi requests: cpu: 100m memory: 200Mi ports: - containerPort: 80 volumeMounts:
- name: common-cm mountPath: /etc/config - name: dcell mountPath: /etc/secret - name:
cache-volume mountPath: /cache - name: test-volume mountPath: /test-hp imagePullSecrets:
- name: myregistrykey volumes: - name: common-cm configMap: name: common-cm - name: dcell
secret: secretName: dcell - name: cache-volume emptyDir: {} - name: test-volume
hostPath: path: /var/lib/baetyl type: Directory
Job
apiVersion: batch/v1 kind: Job metadata: name: pi labels: app: pi spec: backoffLimit:
6 completions: 1 parallelism: 1 template: metadata: name: pi spec: containers: -
name: pi image: perl command: ["perl", "-Mbignum=bpi", "-wle", "print bpi(2000)"] restartPolicy: Never
2.3.4 service资源demo
NodePort
- 如果yaml文件中不携带service类型资源，则app的默认模式为ClusterIP模式，如果需要NodePort类型的app，则需要携带NodePort类型的Service，并且端口配置需要与deploy/ds/job中的端口配置关联，目前只支持NodePort类型Service的解析；
- 若删除资源时，只删除service资源，那么对应的操作是将app的port类型转为ClusterIP类型，端口配置不变，原有的NodePort端口配置删除，不再生效；
apiVersion: v1 kind: Service metadata: labels: svc: nginx name: nginx-svc namespace: default spec:
ports: - name: web port: 80 targetPort: 80 nodePort: 8080 selector: app: nginx type: NodePort
