文档简介:
操作场景

前提条件
操作步骤

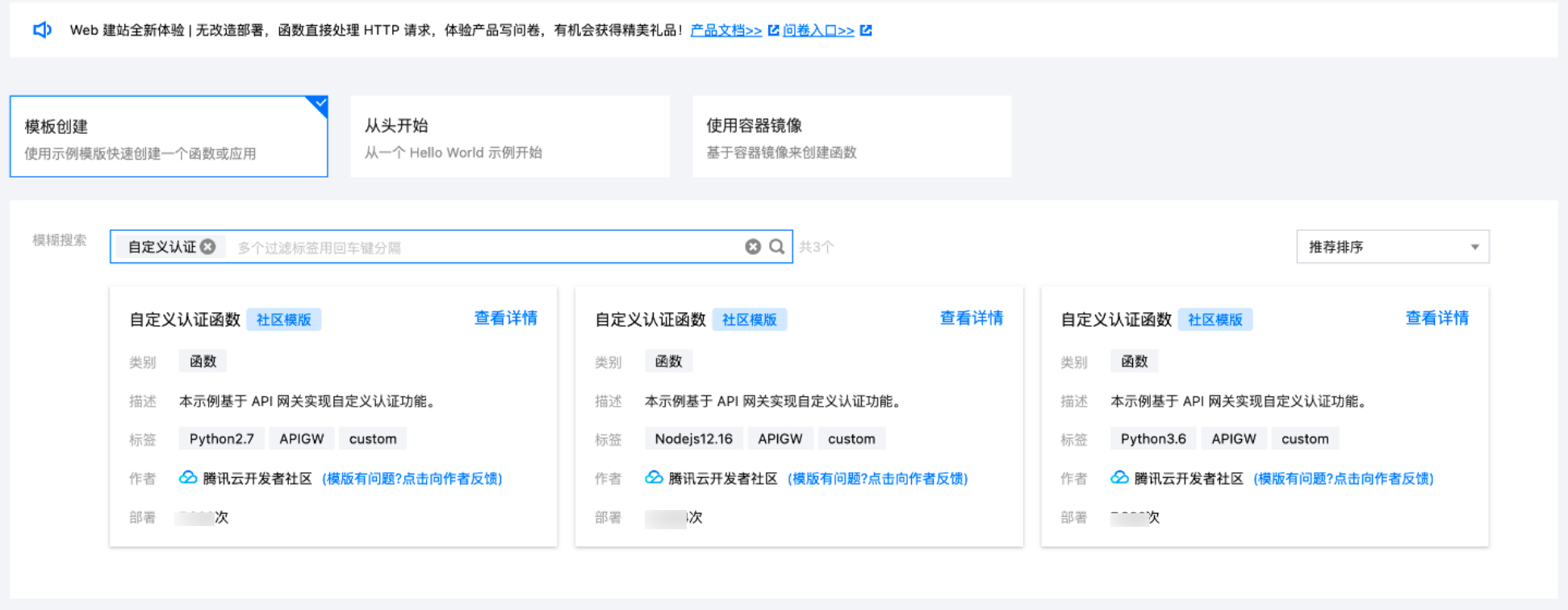

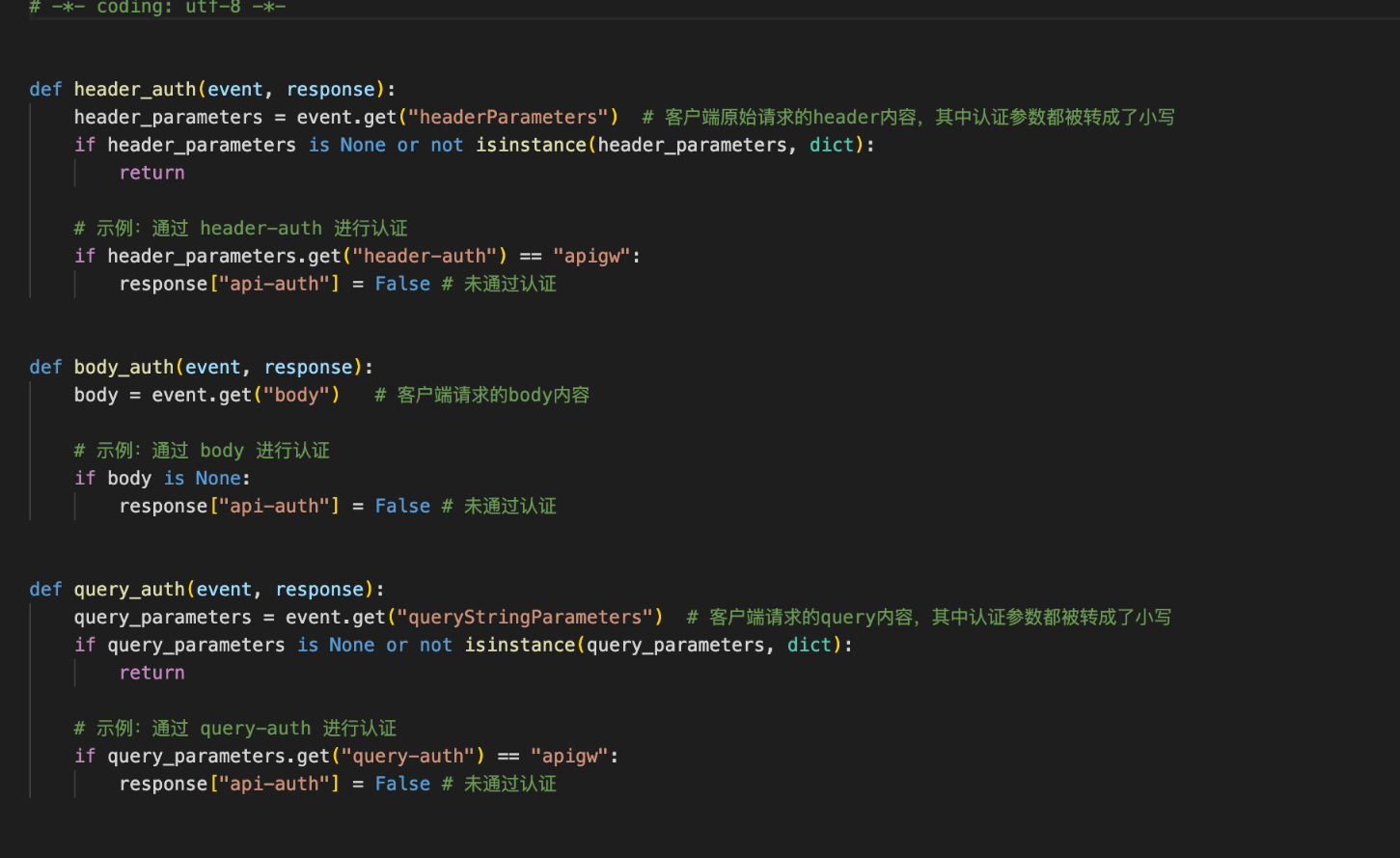

步骤1:创建认证函数

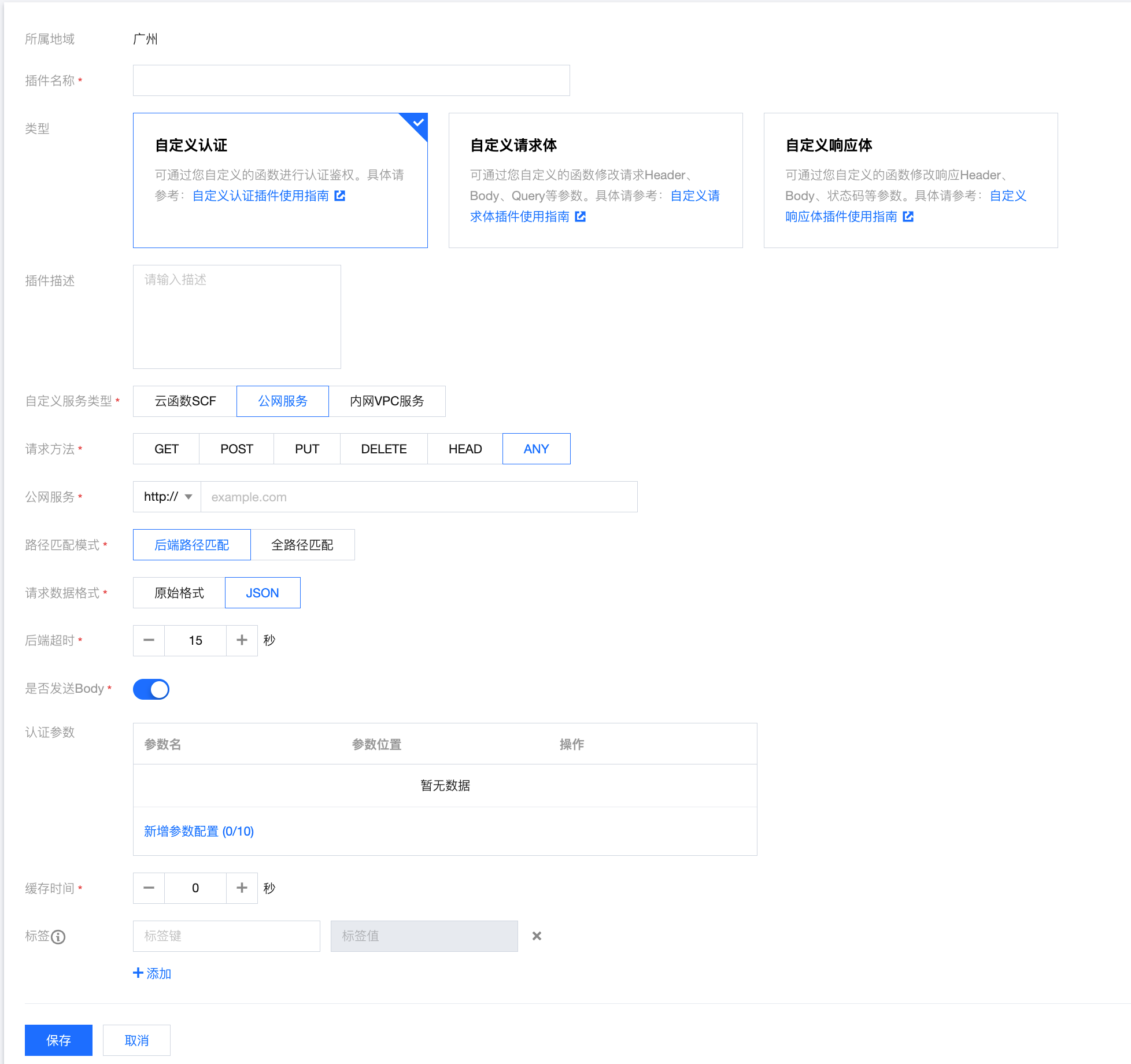

步骤2:创建自定义认证插件
参数
|
是否必填
|
说明
|
选择函数
|
必填
|
选择认证函数所在的命名空间、名称和版本。
|
后端超时
|
必填
|
设置 API 网关转发到认证函数的后端超时时间,超时时间的最大限制为30分钟。在 API 网关调用认证函数,未在超时时间内获得响应时,API 网关将终止此次调用,并返回相应的错误信息。
|
是否发送 Body
|
必填
|
当此选项的值为“是”时,会把客户端请求的 Header、Body、Query 都会发送给云函数。
当此选项的值为“否”时,不会发送请求 Body。
|
认证参数
|
选填
|
选填,但如果设置了参数则请求数据中为必填。当“缓存时间”不为0时,必须设置此参数。使用缓存时,此参数将作为搜索条件来查询认证结果。
|
缓存时间
|
必填
|
设置认证结果缓存的时间。值为0时代表不开启缓存,缓存时间最大支持3600秒。
|
参数
|
是否必填
|
说明
|
请求方法
|
必填
|
请求自定义认证函数的方法,支持 GET、POST、PUT、DELETE、HEAD、ANY。
|
公网服务
|
必填
|
自定义认证服务访问地址,支持 HTTP 和 HTTPS 协议。
|
路径匹配模式
|
必填
|
支持后端路径匹配和全路径匹配两种方式。
后端路径匹配:直接使用配置的路径请求服务。
全路径匹配:使用去除请求路径的路径请求服务,如 API 路径配置为 /a/,请求路径为 /a/b,开启全路径匹配后,传输给服务的为 /b。
|
请求数据格式
|
必填
|
APIGW会把客户端发送的请求按照不同的格式转发给公网/内网认证服务。
原始格式:按照请求原始的内容和格式转发给认证服务。
JSON:将原始请求中的 Header Query Body Method PATH 参数转换成新的格式作为 Body 转发给公网/内网认证服务。
|
超时时间
|
必填
|
请求后端超时时间。默认15s。
|
是否发送body
|
必填
|
如果后端认证服务不需要通过 Body 做额外验证,可以不需要发送 Body,减少转发的性能损耗。
|
缓存时间
|
必填
|
相同的认证参数在缓存时间内只会请求一次后端。默认为0,表示不走缓存,每次都请求后端认证服务。
|
认证参数
|
选填
|
选填,但如果设置了参数则请求数据中为必填。当“缓存时间”不为0时,必须设置此参数。使用缓存时,此参数将作为搜索条件来查询认证结果。
|

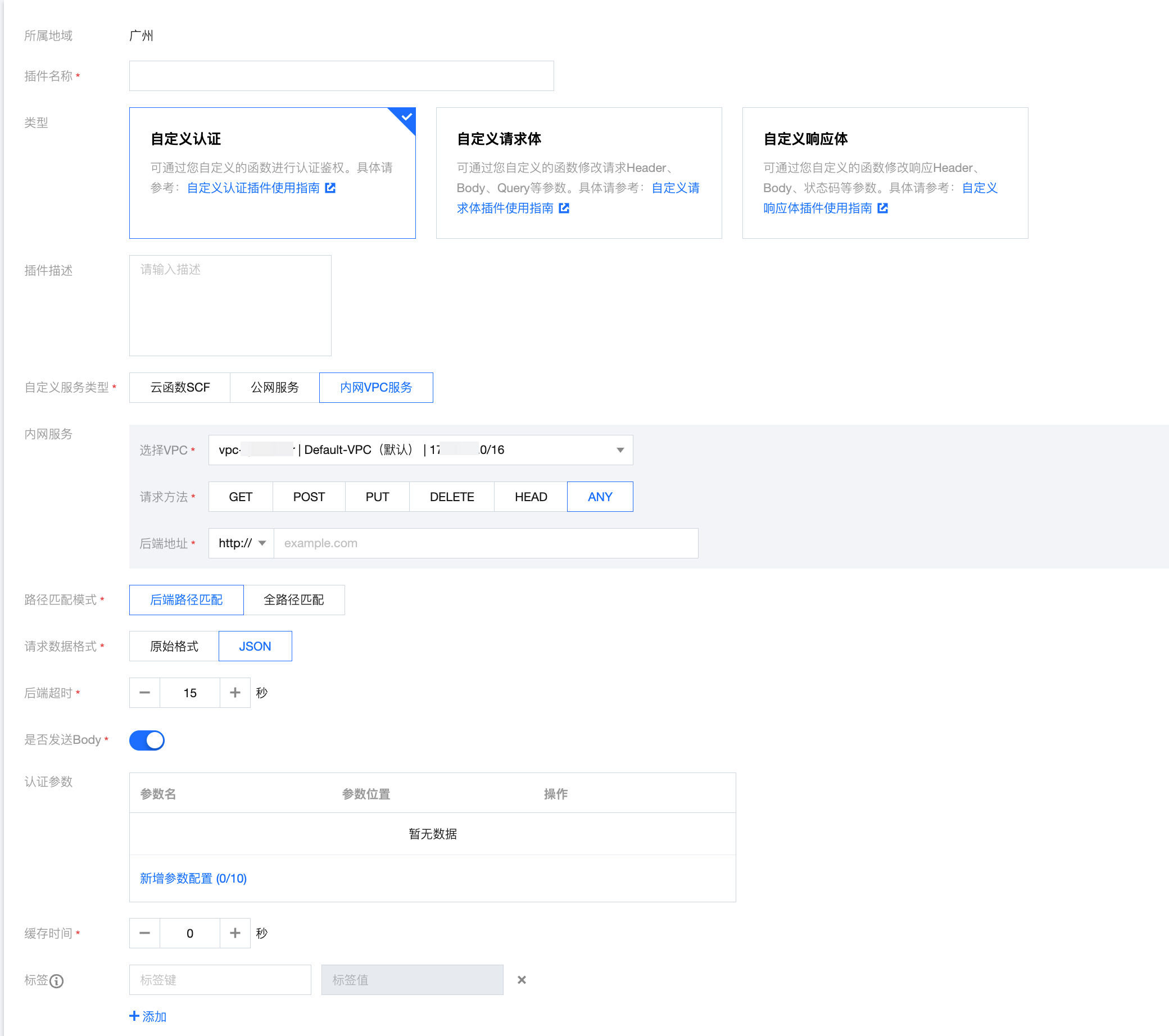

参数
|
是否必填
|
说明
|
选择 VPC
|
必填
|
选择认证服务所属的 VPC。
|
请求方法
|
必填
|
请求自定义认证函数的方法,支持 GET、POST、PUT、DELETE、HEAD、ANY。
|
后端地址
|
必填
|
自定义认证服务访问地址,支持 HTTP 和 HTTPS 协议。
|

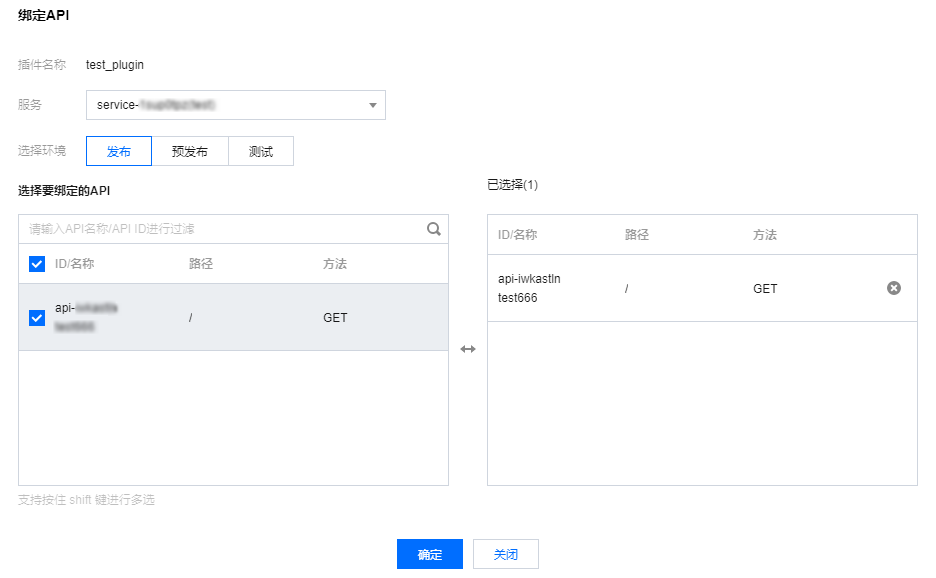

步骤3:绑定 API

插件及请求响应示例
{"cache_time":10, // 认证结果缓存时间,单位秒,合法值:0 ~ 3600 秒"endpoint_timeout":15, // 后端超时时间,单位秒,合法值:0 ~ 60 秒"func_name":"test_name", // 自定义函数名称"func_namespace":"test_namespace", // 自定义函数命名空间"func_qualifier":"$LATEST", // 自定义函数版本"is_send_body":true, // 是否将请求Body发送到函数"header_auth_parameters":[ // Header位置的认证参数,插件根据参数值来缓存认证结果"Header1"],"query_auth_parameters":[ // Query位置的认证参数,插件根据参数值来缓存认证结果"Query1"],"user_id":1253970226, // appid"version":"2021-12-26 17:17:49"// 插件版本,格式:yyyy-MM-dd HH:mm:ss,编辑插件时,传入新值会使得插件下的缓存结果失效}
{ "requestContext": { // 请求的信息 "path": "\/test", "httpMethod": "POST", "sourceIp":
"113.108.77.64", "stage": "release", "serviceId": "service-i76yjnfu", "identity": {} },
"path": "\/test", // 请求路径 "httpMethod": "POST", // 请求方法 "body": "{\"data\":1}",
// 请求Body "queryStringParameters": { // 请求的Query "query": "1"}, "headerParameters":
{ // 请求Header "accept": "*\/*", "host": "service-ixxxxx-xxxxx.gz.tencentapigw.cn",
"header-auth": "apigw", "content-length": "10", "content-type": "application\
/x-www-form-urlencoded", "user-agent": "curl\/8.1.2" }
{ "api-auth": true, // 认证结果 true:认证通过 false:认证失败 "api-succ-headers": {"key":"value"}, // 认证成功后需要添加到转发到后端的header "api-response": "auth fail" // 认证失败后返回自定义内容 }
注意事项
自定义服务类型规则
示例代码:自定义认证服务
from http.server import BaseHTTPRequestHandler, HTTPServer from urllib.parse import urlparse, parse_qs import json
PORT_NUMBER = 8088 class MyHandler(BaseHTTPRequestHandler): def do_POST(self): response = {'api-auth': True} #
Header认证 header_auth_key = self.headers.get("header-auth") if header_auth_key == "apigw": response
['api-auth'] = False # Query认证 # parsed_url = urlparse(self.path) # query_params
= parse_qs(parsed_url.query) # query_auth_key = query_params.get("query-auth",
[None])[0] #if query_auth_key == "apigw": # response['api-auth'] = False
self.send_response(200) self.send_header('Content-type', 'application/json')
self.end_headers() self.wfile.write(json.dumps(response).encode('utf-8')) try:
server = HTTPServer(('', PORT_NUMBER), MyHandler) print(f'Started HTTP server
on port {PORT_NUMBER}') # Wait forever for incoming HTTP requests server.serve_f
orever() except KeyboardInterrupt: print('^C received, shutting down the web server')
server.socket.close()
from http.server import BaseHTTPRequestHandler, HTTPServer import json
PORT_NUMBER = 8088 class MyHandler(BaseHTTPRequestHandler): def do_POST(self):
response = {'api-auth': True} content_length = int(self.headers.get('Content-Length',
0)) request_body = self.rfile.read(content_length).decode('utf-8') request_body =
json.loads(request_body) # Header认证 header_parameters = request_body.get('headerPar
ameters', {}) if header_parameters.get('header-auth') == "apigw": response['api-auth']
= False # Query认证 # query_parameters = request_body.get('queryStringParameters',
{}) # if query_parameters.get('query-auth') == "apigw": # response['api-auth']
= False self.send_response(200) self.send_header('Content-type', 'application/json')
self.end_headers() self.wfile.write(json.dumps(response).encode('utf-8')) try: serve
r = HTTPServer(('', PORT_NUMBER), MyHandler) print(f'Started HTTP server on port
{PORT_NUMBER}') # Wait forever for incoming HTTP requests server.serve_forever()
except KeyboardInterrupt: print('^C received, shutting down the web server')
server.socket.close()
常见错误信息
错误信息
|
含义
|
Custom authentication failed: authentication information, incorrect
|
认证失败,默认返回内容。
|
Custom authentication failed: custom service request, request failed
|
请求后端服务失败,需排查后端服务状态是否正常。
|
Custom authentication failed: custom service response, invalid content
|
认证服务返回的数据格式错误或者认证服务返回的数据做了 Gzip 压缩,当前不支持对认证服务响应做 Gzip 数据解析。
|
